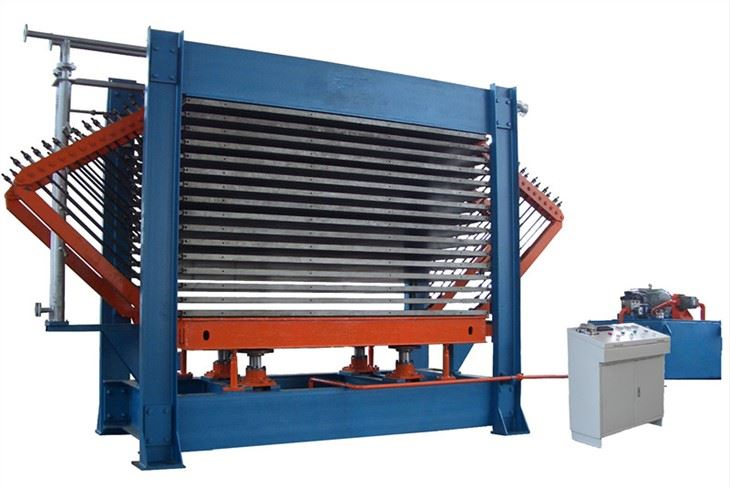

12 Openings Veneer Hot Press Dryer

As the leading manufacturer of woodworking machines in China.Welcome to inquiry.


Veneer Plywood Dryer Hot Press

12 openings veneer hot press dryer can be used as hot press and drying machine. For hot press machine is used to bond the spread sheets together under high temperature and pressure. The packs remain under the prescribed conditions of temperature and pressure until curing the glue takes place. The result is plywood which requires sanding and trimming and is then ready for dispatch the drying function, after the hot-pressing procession, the machine will remove the excess moisture by regulating temperature.

We also can design the machine as our customer’s requirement, the customer need show us the specification as follow: Nominal pressure, platen size, daylight number and distance, and the process capacity, our engineer will design the machine for you.

6 Features

1. This is a hot-pressing breathing veneer dryer.  It looks like the hot press . The surface of the pressing plate is grooved and milled, so water will flow out soon after pressing. This structure makes it very efficient and productive. Its drying capacity is 35 cubic meters 24 hours a day.

2. Its motor power only 13kw, average electricity consumption only 5kw/ hour, so the drying cost is very low.

3. This hot press veneer dryer machine is heated by steam water or oil, so you can use steam boiler or oil boiler, and you can burn waste wood to heat the boilers. Cost is very low.

4. As the veneer is pressed by solid hot platens when working, so veneer will because very flat after dry, and the veneer spoil rate is not high.

5. It is equipped with the pinion and rack balancing system to keep the machines runs smoothly.

6. Synchronize close system used, to guarantee that all the layers close at the same time.


Max. loading

40 T

Number of daylights

12 openings

Platen Size (l×w×t)

2800×1450×42 mm

Opening distance

60 mm

Heating mode


Feeding direction

Lateral feeding

Height of working platform

4FT HEAVY TYPE NC. Spindless veneer lathe with build-in clipper


4×100 mm

Max. stroke of cylinder

720 mm

Normal oil pressure

12.7 MPa


15 KW

Overall dimension (l×w×h)

5510×1814×3350 mm

Approx weight

22000 kg
