15 Layers 600T Panel Heat Press Machine

15 Layers 600T Panel Heat Press Machine

Parameters: Nominal Total Pressure:6000KN Rated Pressure:25MPa Size of Hot Platen:2700*1350*42/52MM(Q235) Quantity of Hot Platen:16PCS Specification of main oil cylinder :320*3PCS Interlayer spacing:58-80MM Overall Size:3450*34500*1350MM Total Weight:30000KG Heating medium: Steam or Oil Closing...

Products Specifications:

15 Layers 600T Panel Heat Press Machine

15 Layers 600T Panel Heat Press Machine Parameters:

Nominal Total Pressure:6000KN

Rated Pressure:25MPa

Size of Hot Platen:2700*1350*42/52MM(Q235)

Quantity of Hot Platen:16PCS

Specification of main oil cylinder :320*3PCS

Interlayer spacing:58-80MM

Overall Size:3450*34500*1350MM

Total Weight:30000KG

Heating medium: Steam or Oil

Closing time:27S

Power: 50kw

Packaging & Delivery

Packaging Details: in nude

Delivery Time: 3 days


Production Market We have customers from both domestic market and oversea market. Our main sales market focus on the Southeast Asia and African, like Vietnam, Philippines, Indonesia, Kenya, Congo and so on.


Our service Besides our existing molded products, we also can produce custom-made products according to the drawings from our customers. We control the product quality critically for every step during the manufacturing. We offer technical support that is second to none.

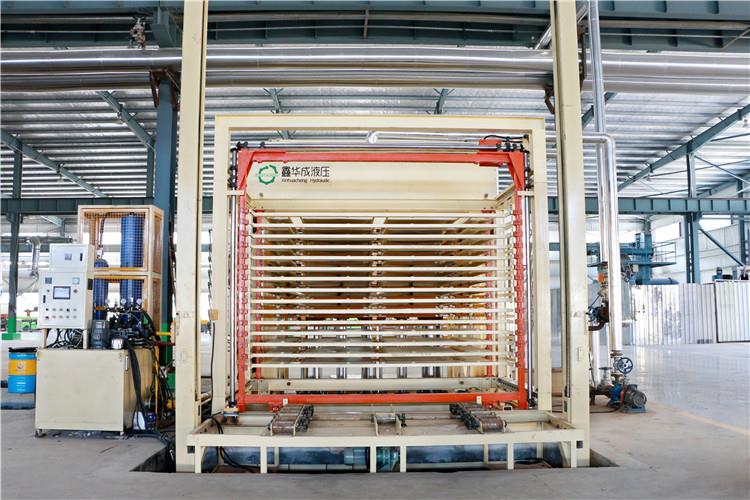

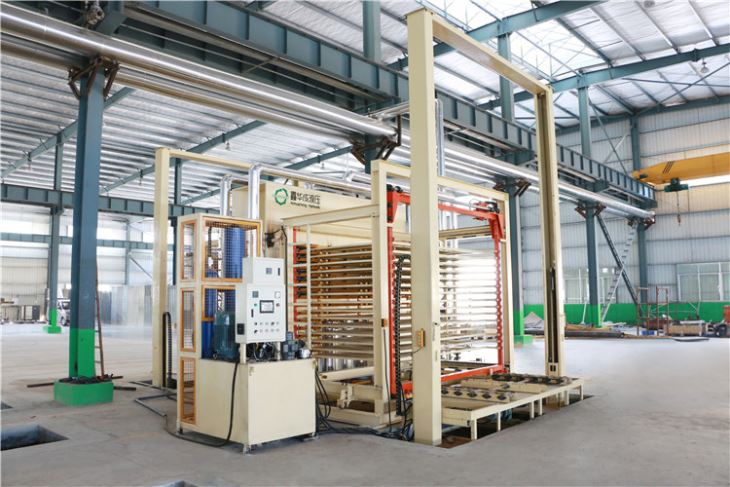

 15 Layers 600T Panel Heat Press Machine show.jpg
