- Plywood Hot Press
English
 |

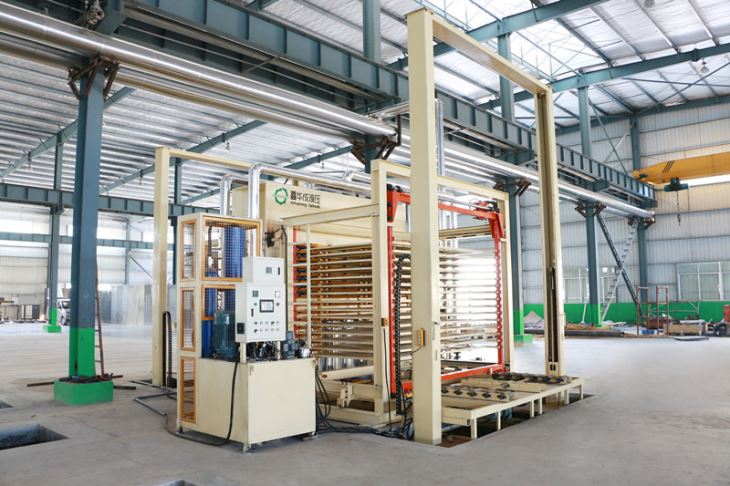

15 openings hot press is for 4*8ft,3*6ft, 3*7ft,plywood ,panel and film-face plywood.The thickness of plywood is 3mm-28mm.
| Quantity: | |
|---|---|
| Main technical parameters： | |
| 1.Size of overall | 5236*3550*1000mm |
| 2.Total weight | 48T |
| 3.Upper and bottom beam | 1000mm and 900mm |
| 4.Size of hot platen： | 1350*2700*42mm(q235) |
| 5.Layers | 15 |
| 6.Daylight | 80mm |
| 7.Normal pressure | 600T |
| 8.Size of oil cylinders | 3*320 |
| 9.Closing time | 23s |
| 10.Falling time | 24s |
| 11.Heat-conducting medium | steam |
| 12.Energy Consumption | 26kal |
| 13.Total power | 27KW |
| 14.Working pressure | 380V 50HZ |
1.The hot press machine is widely used in producing plywood/OSB/fiberboard / block board, etc..
2. The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong rigidity, and ensure high pressure.
3. Microcomputer control system is made by good quality hydraulic unit, fast press,accurate press, high efficiency.
4. The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
5. we can make according to customers' request.
Nude Packing/Standard Packing for Container Delivery/Packed as Client's Request.
I. Short time abroad service: 10-30 days, one person. The buyer should pay for the round air fare, food and accommodation. The service is 100usd/day, and including: the machine’s fixing, debugging, operating, maintaining and people’s training.
II. The buyer sends people to seller’s factory for study: one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine’s fixing, debugging, operating, maintaining.
| Main technical parameters： | |
| 1.Size of overall | 5236*3550*1000mm |
| 2.Total weight | 48T |
| 3.Upper and bottom beam | 1000mm and 900mm |
| 4.Size of hot platen： | 1350*2700*42mm(q235) |
| 5.Layers | 15 |
| 6.Daylight | 80mm |
| 7.Normal pressure | 600T |
| 8.Size of oil cylinders | 3*320 |
| 9.Closing time | 23s |
| 10.Falling time | 24s |
| 11.Heat-conducting medium | steam |
| 12.Energy Consumption | 26kal |
| 13.Total power | 27KW |
| 14.Working pressure | 380V 50HZ |
1.The hot press machine is widely used in producing plywood/OSB/fiberboard / block board, etc..
2. The main frame is welded by good quality NO1 standard steel plate, good design of frame and structure, strong rigidity, and ensure high pressure.
3. Microcomputer control system is made by good quality hydraulic unit, fast press,accurate press, high efficiency.
4. The hydraulic circuit is composed of integrated blocks and compact in structure, ensuring accurate and reliable action of the system.
5. we can make according to customers' request.
Nude Packing/Standard Packing for Container Delivery/Packed as Client's Request.
I. Short time abroad service: 10-30 days, one person. The buyer should pay for the round air fare, food and accommodation. The service is 100usd/day, and including: the machine’s fixing, debugging, operating, maintaining and people’s training.
II. The buyer sends people to seller’s factory for study: one month and one person. The buyer should pay for the round air fare, and the seller arrange for food and accommodation, and the service including: the machine’s fixing, debugging, operating, maintaining.
