6 Layers Cold Press

Plywood cold press with loading system and 500 ton Cold Press with conveyor loading system


6 Layer Cold Press Machine for Plywood Making

Plywood can be made effectively without trouble from high moisture veneer..Troubles inside hot press caused by turning of veneer and produced rate of inferior plywood were remarkably decreased and as a result, operation rate of hot press was raised up. Control by pressure gauge with micro switches, and compresses automatically if pressure will be down from your setting pressure New designed frame, to ensure machine steady and use life The ram use metal FCD-50, hardness 50~60 with high accuracy processing. the dense proper high not easy oil leak to lengthen the service life, reduce the cost of maintenance.

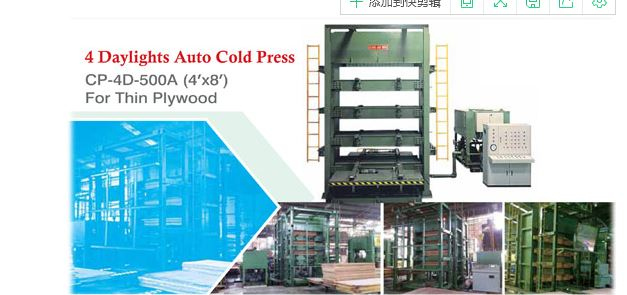

It comprises 5 units which are 4 daylights of main engine for cold press, hydraulic auto loader with long stroke, central control oil press, central control cabinet for a complete automatic cold press system.

It is designed special main engine to fit each daylight for pressing & used strong steel of h shape to adopt the fulcrum of top plate of main engine & frame .It gets united the base of the front & the rear lift table & their smart appearance .Except for original slide gear, it uses the h shape & add leading gear to ensure smooth during weight in working order .

To adapt bottom ram type, each daylight uses small pressing space design which can gradually go on feed plate right away for pressing. It improves the quantity of products in large and the quantity of products indirectly.

It is a fully automatic control by programming controller to feed plate ,pressing of each daylight ,pressing time ,unloading & setting pressure.

Ram for oil cylinder uses the special FCD-50 (HARDNESS HRC 50~60) with high accuracy processing which belongs to famous plant inside the country .It is not liable to leak oil out so that it can inside the country .It is not liable to leak oil out so that it can inside the country .

It is not liable to leak oil out .


Total pressure


Board feeding direction

Transverse and full automatic(three Power roller)


6 layers

Layer spacing


Middle beam

Number of hot press plate:6pcs


2700*1370*400(The first layer),2700*1370*350(The second,third ,fourth,fifth) roller conveyor



Cylinder for cold press machine





4pcs rubber seals per pcs of cylinder

Hydraulic system for cold press machine

Compression     resistance:25Mpa

High pressure pump flowing


Low pressure pump flowing


Motor power


Overall dimension



About 38
