| Quantity: | |
|---|---|
XHC-CXCT
XHC
846599

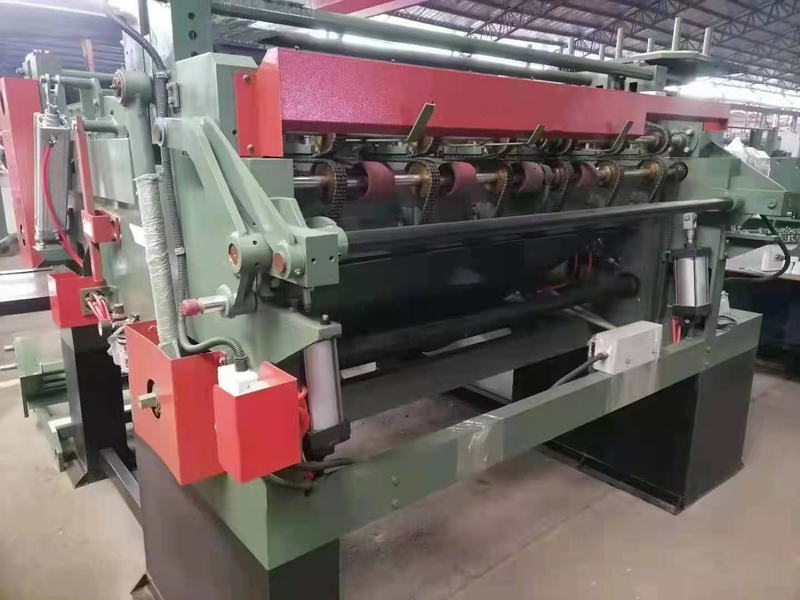

Automatic veneer splicing machine has the advantages of high degree of automation, simple and convenient operation, short splicing cycle and saving manpower.It is an ideal plate splicing equipment.Although the equipment is high-frequency heating, but the glue time is very short, the whole process only a few minutes.High degree of automation, the use of numerical control technology, the whole production line with automatic feeding, gluing, discharging, high frequency plate, palletizing system, acording to the characteristics of wood to control the gluing pressure, to ensure the effect of plate.
Poweful function, high efficiency, supports remote assistance, has continuous splicing function, and can be added with automatic sawing function, and the equipment heating only needs 30-60 seconds, the whole splitter production line only needs one person to operate, low labor intensity, higher efficiency.
Stable equipment, good processing effect high frequency splitter precision, stable performance, after the product quality is more smooth and reliable.
Automatic gluing system saves more than 25-30% than manual gluing, thus reducing the cost.
Adopt microcomputer PLC control system to ensure the automatic operation of the equipment, humanized design, simplify the complex operation, improve the work efficiency.
The auxiliary heating system is automatically controlled by automatic temperature controller, heating temperature can be set freely, heating power can be adjusted, without energy saving and environmental protection.
The panel machine consists of a panel machine host, a hydraulic station, a feeder, a discharge table, and a control system. The machine is controlled by PLC, which has the characteristics of high automation, simple and convenient operation, low labor intensity, short splicing cycle, and labor saving. The splicing size of this panel machine is usually 4*8ft, 4*4ft, 3*6ft, and the thickness can be 1.2mm-3.6mm. Other sizes are available in tailor-made configurations.
There are different types of jigsaw machines, such as horizontal stitching machines, vertical stitching machines, and tooth joining machines.
This machine is an L-shaped vertical splicing intelligent automatic equipment, which can convert the horizontal splicing machine discharge board into a vertical splicing machine, and can splicing 1.5-2.5mm thick wood boards, completing 4 feet * 4 feet, 4 feet * 8 feet, 4 feet * 10 feet, 4 feet * 10 feet, 4 feet * 12 feet and other product boards, the effect is 4-5 sheets/min.
This machine improves the physical properties and overall quality of the original sheet. Greatly reduce the labor intensity of workers, while reducing the use of costs and energy consumption. Significantly improved production efficiency and raw material utilization. Make the product more environmentally friendly and flat.
The products spliced by this automatic vertical splicing machine are very flat and are used to manufacture better and higher quality plywood. The PLC microcomputer precise gap control and 0.5 second ultra-fast cooling technology ensure that the veneer after splicing is not spliced. There is no seam when overlapping, no bending, smooth and neat.
1. This machine is equipped with servo control system and 2-stage speed setting, which cooperates with operation, manufacturing and development functions.
2. Servo motors have domestic mature Intonwei, mature technology, and humanized design of servo system solutions. You can also choose imported Siemens servo motors.
3. The conveying system and cutting system are controlled by servo system and directly driven. The cutting range is accurate, and the range can be reset according to the actual situation.
4. This machine is an L-model vertical splicing intelligent automatic equipment. It only needs one skilled operator to load and unload the board. It can produce 4 feet * 4 feet, 4 feet * 8 feet, 4 feet * 10 feet, 4 feet * 10 feet, 4 feet * 12 feet and other product boards, the effect is 4-5 sheets/min. High production efficiency and reduced production costs. The plate production process is integrated, and the strength and overall quality of the plate are increased.
5. The whole fuselage is finished and heat treated, and the surface of the equipment is smooth and flat. It is not easy to peel off paint, rust and deform, which greatly increases the use time of the equipment and reduces the cost of factory purchases.
Total land area | 11.5m*11m*3.5m | ||
Total motor power | 380V/17+20.6kw | Efficiency | 4-5 sheet/min |
Cooling system | Shared with splicing machine | Working thickness | 1.5-2.5mm |
Feeding size | 4*4ft | Out-feeding size | 4*8ft |
Packing size | 87m3 | Air consumption | 567L/min |
Automatic veneer splicing machine has the advantages of high degree of automation, simple and convenient operation, short splicing cycle and saving manpower.It is an ideal plate splicing equipment.Although the equipment is high-frequency heating, but the glue time is very short, the whole process only a few minutes.High degree of automation, the use of numerical control technology, the whole production line with automatic feeding, gluing, discharging, high frequency plate, palletizing system, acording to the characteristics of wood to control the gluing pressure, to ensure the effect of plate.
Poweful function, high efficiency, supports remote assistance, has continuous splicing function, and can be added with automatic sawing function, and the equipment heating only needs 30-60 seconds, the whole splitter production line only needs one person to operate, low labor intensity, higher efficiency.
Stable equipment, good processing effect high frequency splitter precision, stable performance, after the product quality is more smooth and reliable.
Automatic gluing system saves more than 25-30% than manual gluing, thus reducing the cost.
Adopt microcomputer PLC control system to ensure the automatic operation of the equipment, humanized design, simplify the complex operation, improve the work efficiency.
The auxiliary heating system is automatically controlled by automatic temperature controller, heating temperature can be set freely, heating power can be adjusted, without energy saving and environmental protection.
The panel machine consists of a panel machine host, a hydraulic station, a feeder, a discharge table, and a control system. The machine is controlled by PLC, which has the characteristics of high automation, simple and convenient operation, low labor intensity, short splicing cycle, and labor saving. The splicing size of this panel machine is usually 4*8ft, 4*4ft, 3*6ft, and the thickness can be 1.2mm-3.6mm. Other sizes are available in tailor-made configurations.
There are different types of jigsaw machines, such as horizontal stitching machines, vertical stitching machines, and tooth joining machines.
This machine is an L-shaped vertical splicing intelligent automatic equipment, which can convert the horizontal splicing machine discharge board into a vertical splicing machine, and can splicing 1.5-2.5mm thick wood boards, completing 4 feet * 4 feet, 4 feet * 8 feet, 4 feet * 10 feet, 4 feet * 10 feet, 4 feet * 12 feet and other product boards, the effect is 4-5 sheets/min.
This machine improves the physical properties and overall quality of the original sheet. Greatly reduce the labor intensity of workers, while reducing the use of costs and energy consumption. Significantly improved production efficiency and raw material utilization. Make the product more environmentally friendly and flat.
The products spliced by this automatic vertical splicing machine are very flat and are used to manufacture better and higher quality plywood. The PLC microcomputer precise gap control and 0.5 second ultra-fast cooling technology ensure that the veneer after splicing is not spliced. There is no seam when overlapping, no bending, smooth and neat.
1. This machine is equipped with servo control system and 2-stage speed setting, which cooperates with operation, manufacturing and development functions.
2. Servo motors have domestic mature Intonwei, mature technology, and humanized design of servo system solutions. You can also choose imported Siemens servo motors.
3. The conveying system and cutting system are controlled by servo system and directly driven. The cutting range is accurate, and the range can be reset according to the actual situation.
4. This machine is an L-model vertical splicing intelligent automatic equipment. It only needs one skilled operator to load and unload the board. It can produce 4 feet * 4 feet, 4 feet * 8 feet, 4 feet * 10 feet, 4 feet * 10 feet, 4 feet * 12 feet and other product boards, the effect is 4-5 sheets/min. High production efficiency and reduced production costs. The plate production process is integrated, and the strength and overall quality of the plate are increased.
5. The whole fuselage is finished and heat treated, and the surface of the equipment is smooth and flat. It is not easy to peel off paint, rust and deform, which greatly increases the use time of the equipment and reduces the cost of factory purchases.
Total land area | 11.5m*11m*3.5m | ||
Total motor power | 380V/17+20.6kw | Efficiency | 4-5 sheet/min |
Cooling system | Shared with splicing machine | Working thickness | 1.5-2.5mm |
Feeding size | 4*4ft | Out-feeding size | 4*8ft |
Packing size | 87m3 | Air consumption | 567L/min |
