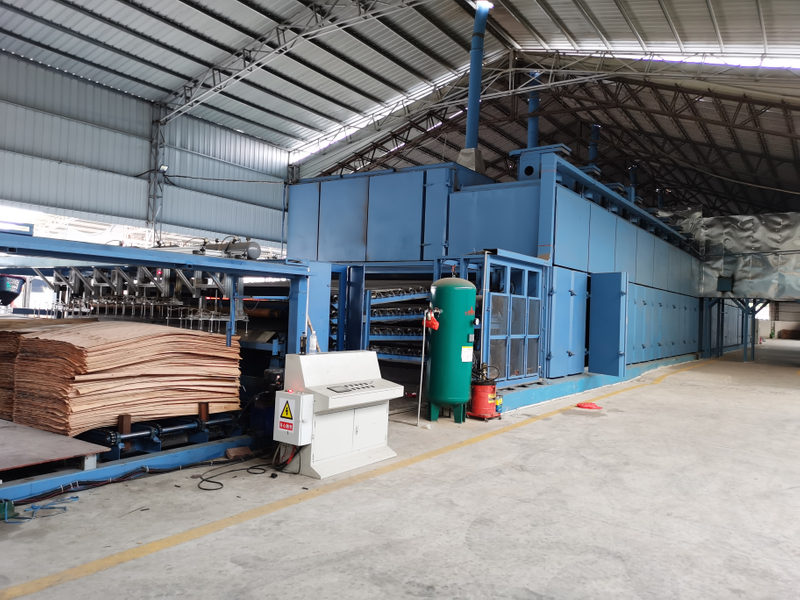

4 Decks Automatic Veneer Roller Drying Machine

Plywood Core Veneer Dryer

Industrial heat pump air drying machine is a new type of high efficiency and energy saving heat pump dryer. Its working principle is based on the reverse Carnot cycle principle, using a small amount of electric energy, using the compressor, the working medium passes through the expansion valve and then evaporates in the evaporator. It is in a gaseous state and absorbs a large amount of heat in the air. The gaseous working medium is compressed by the compressor into a high-temperature, high-pressure gas, and then enters the condenser to release heat, and the drying medium is heated.

Veneer Roller Dryer Is The Main Plywood Machine For Processing Core Veneer

It can remove the extra moisture of the veneer. The final will be more level than the one which dried by continuous veneer dryer.

At site, the modular sections are welded or bolted together. This tight construction not only ensures high thermal efficiency, it also improves working conditions by preventing excess heat and fumes from venting into the mill.

1. This machine adopts a lot of high-tech and advanced electrical control technology. It has the features of high efficiency, energy saving, good drying effect and so on.

2. The air flow is circulated horizontally and sprayed vertically to dry the veneer in machine. Veneers are transferred by couples of rollers.

Four Types Wood Veneer Dryer

Our services for veneer dryer machine , we can supply the following four types wood veneer dryer:

1. Roller dryer

2. Mesh dryer (also can be called as continuous dryer)

3. Mesh & roller combined dryer

4. Press dryer (this dryer is mainly used to dry sliced veneer)

Veneer Drying Machine Parameters

1. The thickness of veneer is 1.8mm, suitable for wood veneer tumble dryer for plywood machine.

2. The thickness of veneer is 0.6mm, suitable for wood veneer mesh dryer for plywood machine.

3. 8-20 sections of heating room, each section is 2m.

4. 2-4 cooling chambers each 2m.

5. The moisture content is about 80%.

6. The working width of the tumble dryer is 2800-4200mm, and the mesh dryer is 2650mm.

7. 2-4 decks, other types can be customized.

8. The heating medium can be heat transfer oil or steam.
