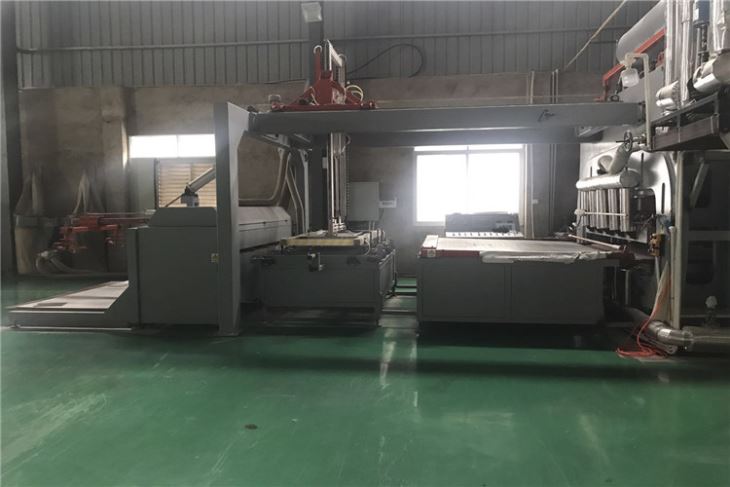

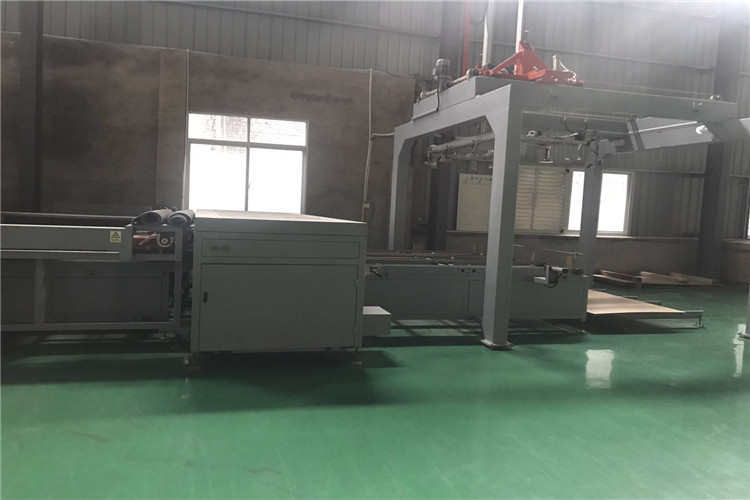

The Laminating line(two sites) is used to laminate the melamine impregnated papers which is glued in the surface of particle board or medium density board under the certain pressure and temperature in the short period time. It's pressing by the stainless steel plate and cushion pad. 1. Power...
| Quantity: | |
|---|---|
The Laminating line(two sites) is used to laminate the melamine impregnated papers which is glued in the surface of particle board or medium density board under the certain pressure and temperature in the short period time. It's pressing by the stainless steel plate and cushion pad.
1. Power Roller
2. Lift
3. Cleaning
4. PositioningConveyor
5. Clamping
6. Feeding
7. Hot Press
8. Discharging
9. Scraping
10. Turning
11. Palletizing
12. Palletizing
Nominal Total Pressure:12000KN
Veneer Size:1220*2440MM
Rated Pressure:25MPa
Size of Hot Platen:2600*1400*100/140MM(Q235)
Specification of Main Oil Cylinder :320*6PCS
Interlayer Spacing: 200MM
Total Weight:30000KG
Heating Medium: Oil
Closing Time:3S
Power: 22.75kw
Number of Hot Plates:2PCS
Thickness of Board:3-30MM
Way of Feeding: Horizontal
Thickness of Frame:30MM
