High Speed Melamine Laminated Hot Press

Hot Press High Pressure Melamine Laminate

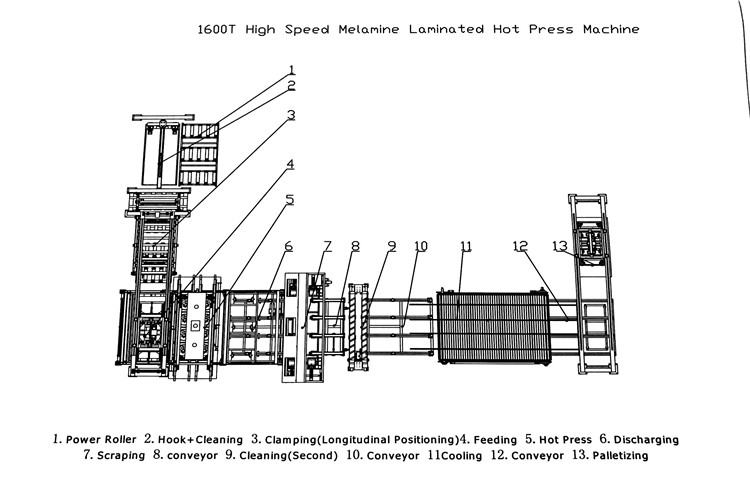

The Laminating line(two sites) is used to laminate the melamine impregnated papers which is glued in the surface of particle board or medium density board under the certain pressure and temperature in the short period time. It's pressing by the stainless steel plate and cushion pad. The line is including :

1. PowerRoller

2. Hook+Cleaning

3. Clamping(Longitudinal Positioning)

4. Feeding

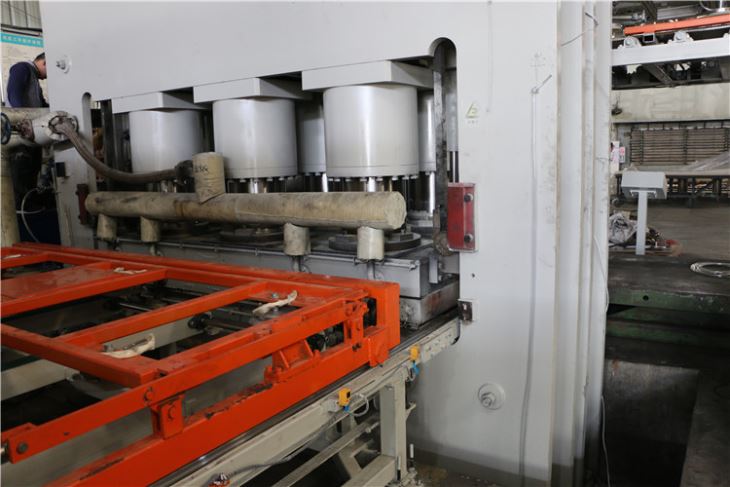

5. HotPress

6. Discharging

7. Scraping

8. conveyor

9. Cleaning(Second)

10. Conveyor

11. Cooling

12. Conveyor

13. Palletizing

High Speed Melamine Laminated Hot Press Parameters

Nominal Total Pressure:12000KN

Veneer Size:1220*2440MM

Rated Pressure:25MPa

Size of Hot Platen:2600*1400*100/140MM(Q235)

Specification of Main Oil Cylinder :320*6PCS

Interlayer Spacing: 200MM

Total Weight:30000KG

Heating Medium: Oil

Closing Time:3S

Power: 22.75kw

Number of Hot Plates:2PCS

Thickness of Board:3-30MM

Way of Feeding: Horizontal

Thickness of Frame:30MM
