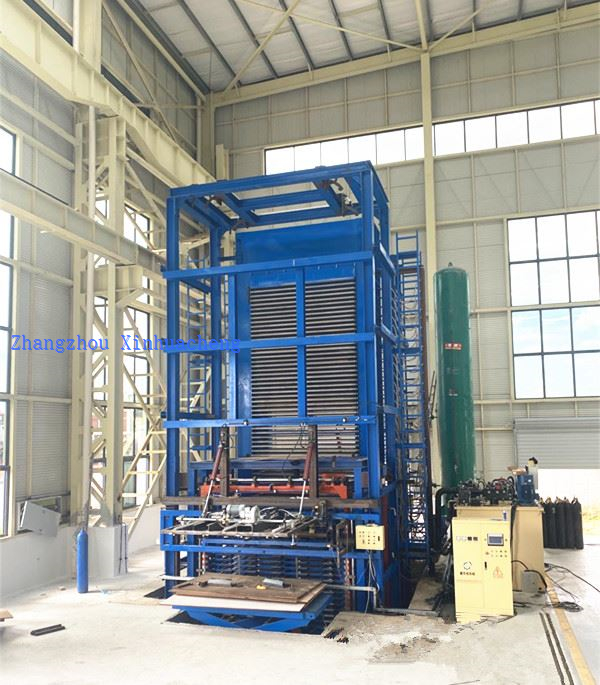

50 Openings 4*8ft hot press machine with loader and unloading system. Welcome to inquiry.
| Quantity: | |
|---|---|
Very Accurate and Reliable Pressing Action
Versatile Performance
Many Built-in Safety Features
Optional Automatic Conveyor System
Process All Panel Sizes and Thicknesses
50 OPENINGS HOT PRESS MACHINE WITH LOADER AND UNLOADING SYSTEM | |||
NO | NAME | ||
① | LOADER SYSTEM | ||
② | HOT PRESS | ||
③ | UNLOADING SYSTEM | ||
① LOADER SYSTEM（PARAMTER） | |||
NO | NAME | PARAMETER | NOTES |
1 | Plywood Size | 4X8ft | |
2 | Openings | 80mm+42mm | |
3 | Layers | 50 | |
4 | Lift cylinder | 2-φ160X6000MM | Rise speed:56mm/S, Fall speed:45S |
5 | Motor | 2-GMR625 | |
6 | Size | 4700X2500X14500MM | |
7 | Roller | 4-φ200mm | MOTOR:750W |
8 | Lift platform | 2650X1350X500mm | Roller:φ110 |
9 | Weight | 16T | |
10 | |||
② HOT PRESS | |||
NO | NAME | PARAMETERS | NOTES |
1 | Size | 3555X1350X9554mm | Heating treatment |
2 | Weight | 31T | |
3 | Pressure | 750T | |
4 | Openings | 80mm | |
5 | Upper beam | 1450mm | Q235 |
6 | Bottom beam | 1450mm | Q235 |
7 | Column length | 350mm | Q235 |
8 | Thickness | 35mm | |
9 | Hot platen | 2700X1350X42mm | Q345(16Mn)，temperature transmitter |
10 | Quantity | 51PCS | |
11 | Oil cylinder | φ360-3500 | WUXI FROM CHINA |
12 | Quantiry | 3PCS | |
13 | Heating system | OIL | |
16 | Capacity | 7m³ | |
17 | Closing time | 10S | |
18 | System pressure | 25MPa | |
19 | Pressurizing time | 27S | |
20 | PLC | VIGOR | TAIWAN |
21 | Contactor | SHILIN | |
22 | Intermediate relay | ABB | |
23 | Weight | 87T | |
③ UNLOADING SYSTEM | |||
NO | NAME | PARAMETERS | NOTES |
1 | Size | 4X8ft | |
2 | Openings | 78+42mm | |
3 | Layers | 50 | |
4 | Lift cylinder | 2-φ160X6000mm | Rise speed:56mm/S, Fall speed:45S |
5 | Size | 4290X1400X13790mm | |
6 | Roller | 4-φ200mm | Motor:750W |
7 | Weight | 8T | |
